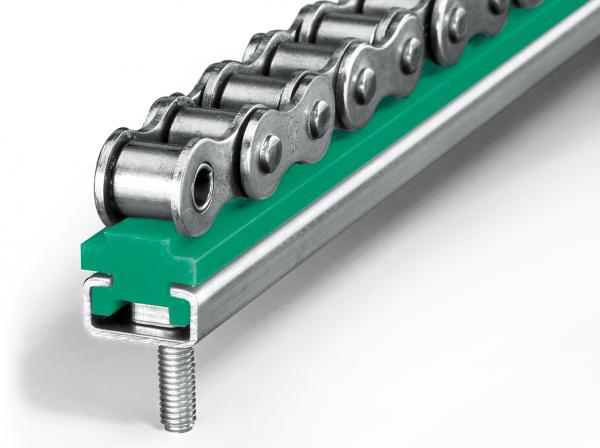

T-Head Bolts


Please speak with Murtfeldt's application technology department to determine the best T-head screw for your needs. We can provide the appropriate models including nuts for one-track and two-track connections.

For more information please visit the following links:
General Information and Product Details.

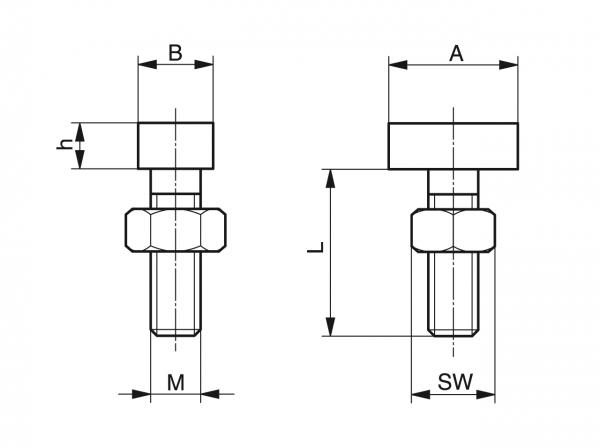

Thread (MxL) Suitable for steel C profile A B h Material Type Article ID
M6x20 C1, C3, C4, C5, C6, C7, C9, C10, C11, C12, C13 18 9.5 4 Galvanized steel - 352010001
M6x20 C1, C4, C5, C6, C7, C9, C12 15.5 9 6 Galvanized steel 20/12 352010005
M6x30 C1, C4, C5, C6, C7, C9, C12 15.5 9 6 Galvanized steel 20/12 352010003
M6x40 C1, C4, C5, C6, C7, C9, C12 15.5 9 6 Galvanized steel 20/12 352010004
M8x20 C4, C6, C7, C9, C12 15.5 9 6 Galvanized steel 20/12 352010008
M8x30 C4, C6, C7, C9, C12 15.5 9 6 Galvanized steel 20/12 352010006
M8x40 C4, C6, C7, C9, C12 15.5 9 6 Galvanized steel 20/12 352010007
M8x20 C4, C6, C7, C9, C12 23 11 6 Galvanized steel 28/15 352010011
M8x30 C4, C6, C7, C9, C12 23 11 6 Galvanized steel 28/15 352010019
M8x40 C4, C6, C7, C9, C12 23 11 6 Galvanized steel 28/15 352010014
M10x20 C4, C6, C7, C9, C11, C12, C13 23 11 7 Galvanized steel 28/15 352010020
M10x30 C4, C6, C7, C9, C11, C12, C13 23 11 7 Galvanized steel 28/15 352010012
M10x40 C4, C6, C7, C9, C11, C12, C13 23 11 7 Galvanized steel 28/15 352010013
M10x20 C6, C9, C12 31 13.5 9 Galvanized steel 38/17 352010015
M10x30 C6, C9, C12 31 13.5 9 Galvanized steel 38/17 352010016
M12x40 C6, C11, C12, C13 31 13.5 9 Galvanized steel 38/17 352010017
M6x20 C1, C3, C4, C5, C6, C7, C9, C10, C11, C12, C13 18 9.5 4 Stainless steel - 352010002
M8x20 C4, C6, C7, C9, C12 15.5 9 6 Stainless steel 20/12 352010025
M8x30 C4, C6, C7, C9, C12 15.5 9 6 Stainless steel 20/12 352010026
Dimensions in mm
